Thực hiện hệ thống
Tổng quan

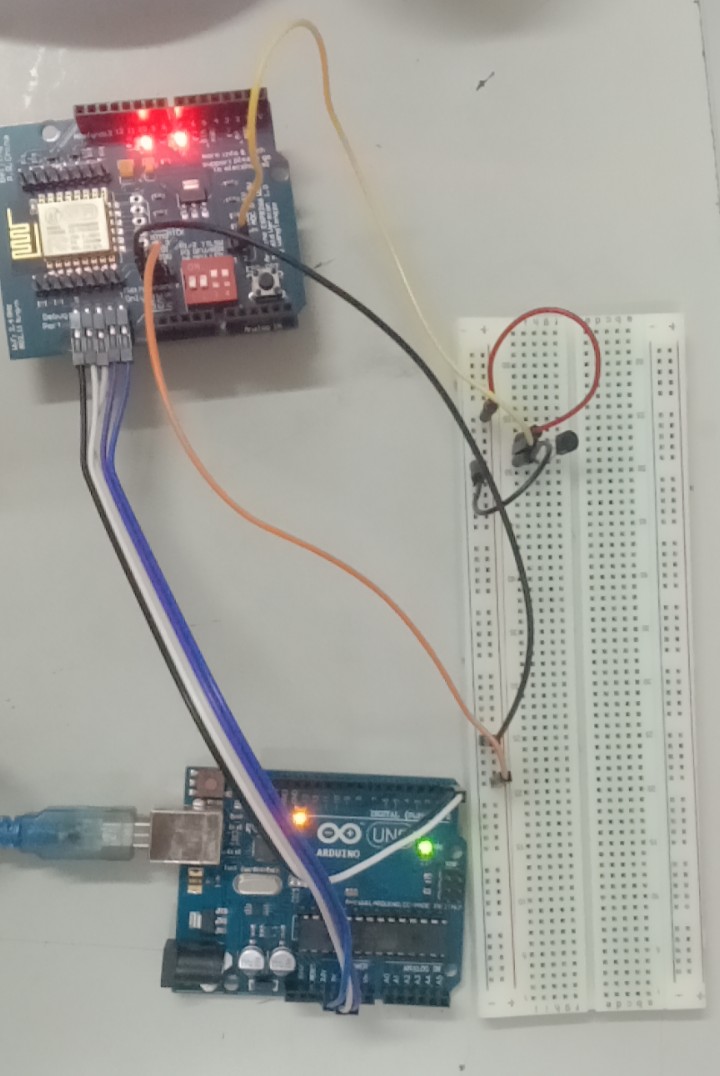

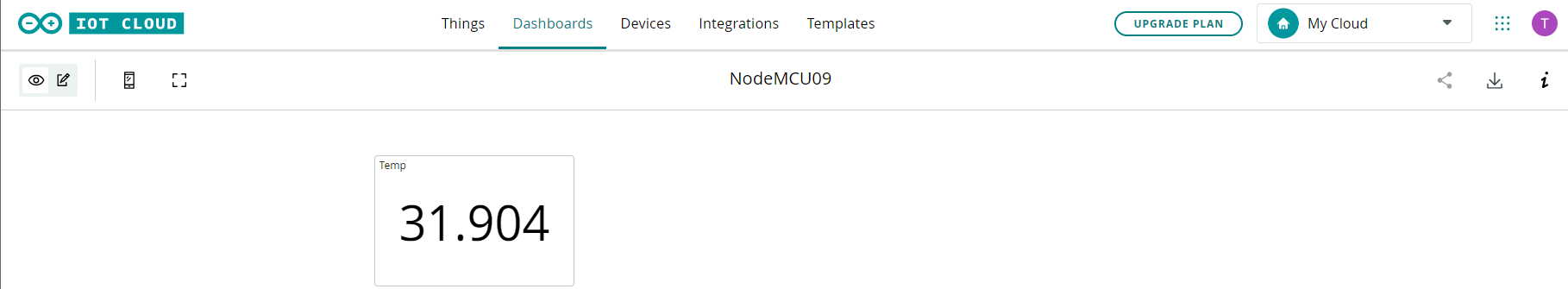

Xây dựng hệ thống IoT giám sát nhiệt độ phòng. Trong đó, bo mạch sử dụng mạch Arduino Uno R3 và Arduino ESP8266 Wifi Shield. Thông số nhiệt độ phòng được đo từ cảm biến LM35, được hiển thị trên giao diện web của Arduino Cloud (minh họa như hai hình bên dưới).
Lắp ráp phần cứng
Các linh kiện cần chuẩn bị

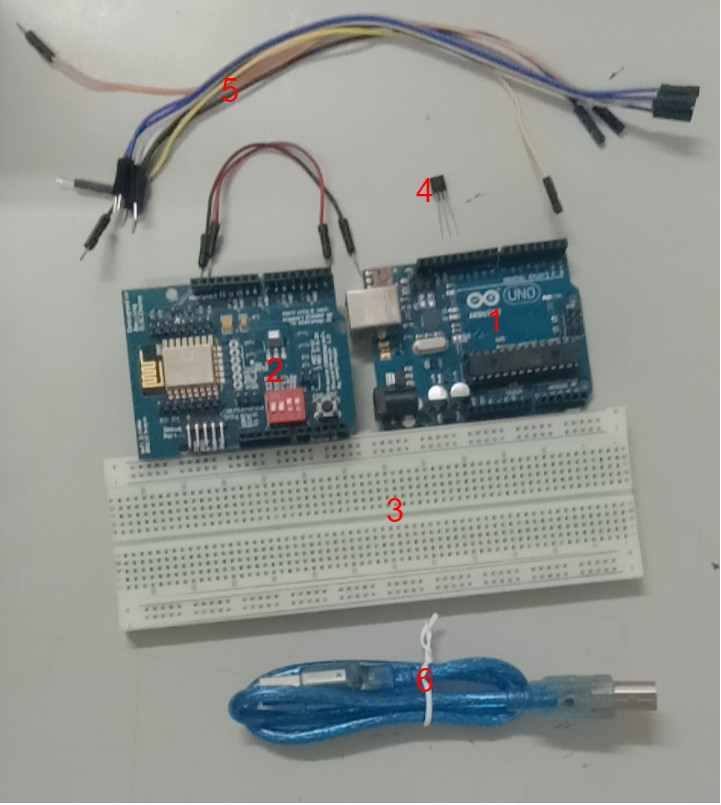

6 loại linh kiện và bo mạch cần chuẩn bị (minh họa như hình bên dưới).
1 mạch Arduino Uno R3.
1 mạch Arduino ESP8266 Wifi Shield.
1 breadboard.
1 cảm biến LM35DZ
8 dây đực-cái và 2 dây đực-đực.
1 dây nạp USB.
Sơ đồ mạch

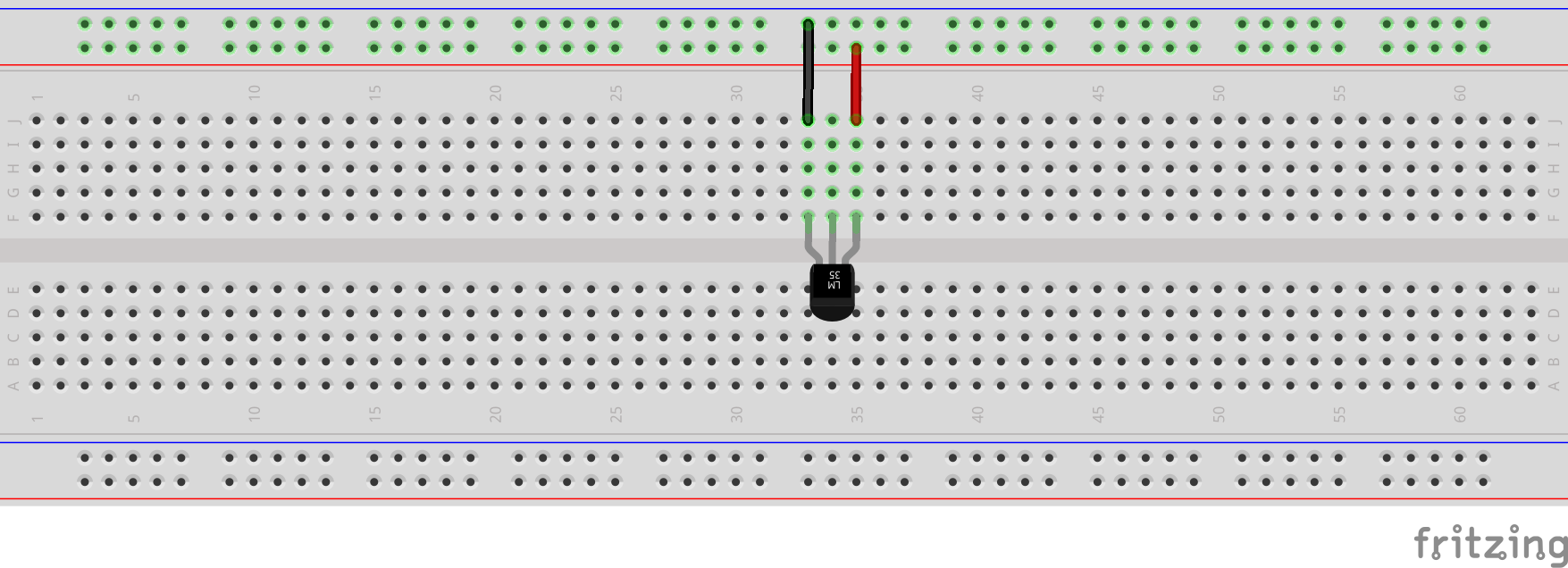

1. Nối cảm biến trên breadboard
2. Kết nối breadboard với Arduino ESP8266 Wifi Shield
Nối dây 3.3V, GND, và chân Analog 3.3V từ Shield tới breadboard.

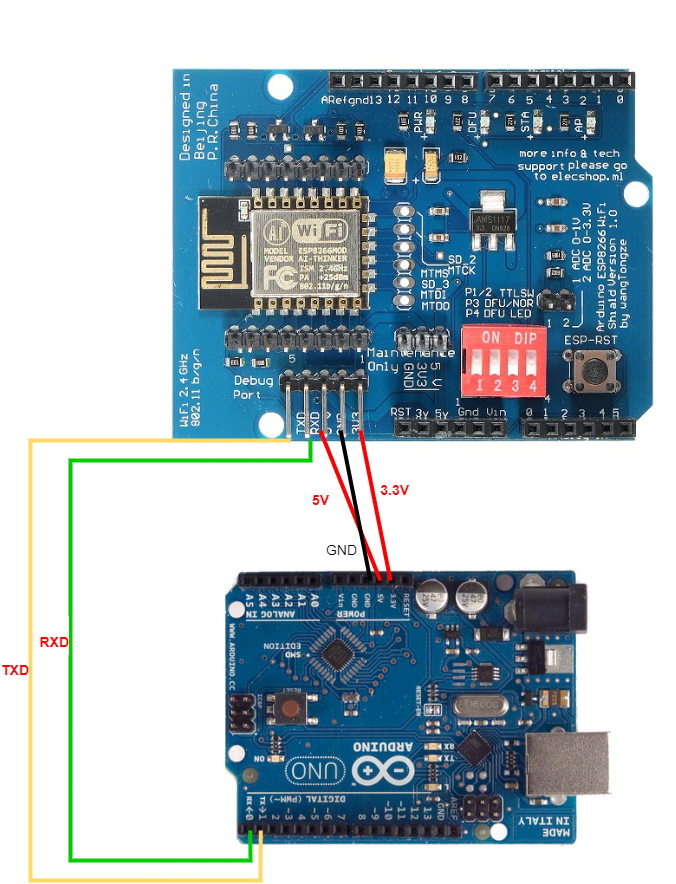

3. Kết nối Arduino ESP8266 Wifi Shield và Arduino Uno R3

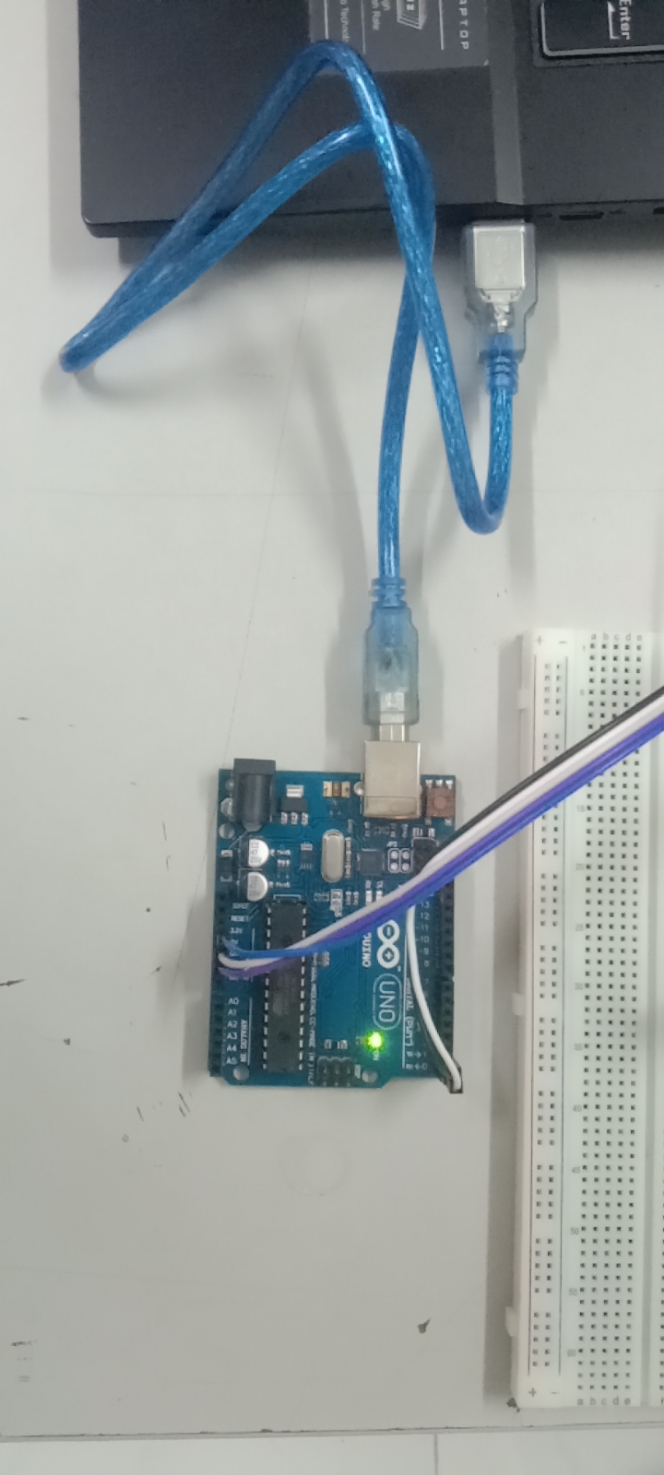

4. Kết dùng cáp USB nối mạch Arduino Uno R3 vào máy tính
Kết nối Arduino Cloud
Thiết lập cấu hình cloud
Mở Arduino Create Agent

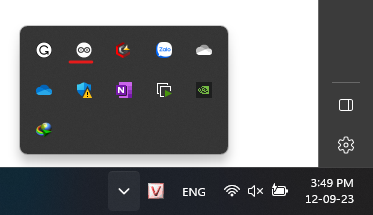

Khi Arduino Create Agent được bật, icon của Arduino Create Agent sẽ hiển thị dưới khay icon của Windows.
Truy cập vào trang chủ của Arduino Cloud.

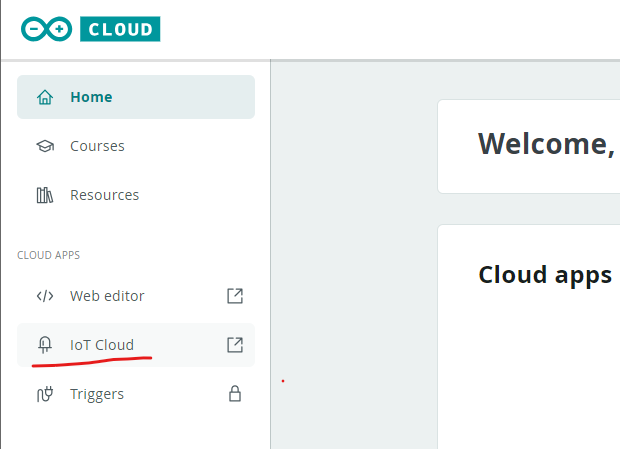

Mở trang Arduino IoT Cloud.
Tạo mới một thing
Sau đó, đặt tên cho thing và tạo device.
Tạo mới một device

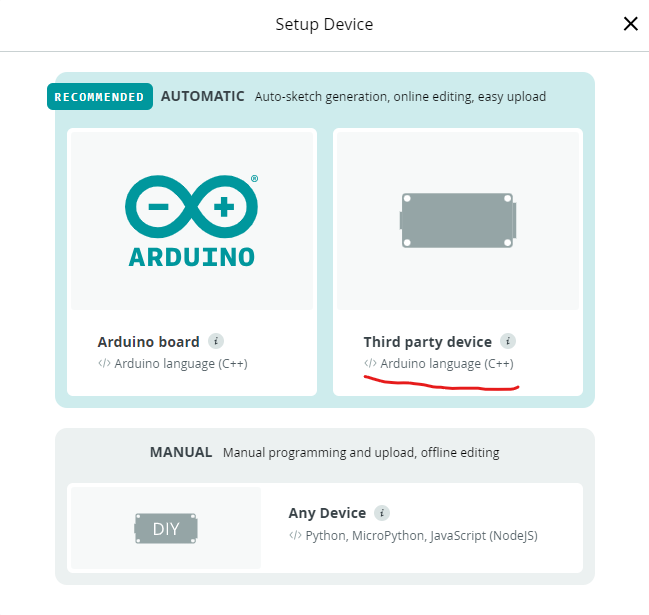

Chọn Third party device.

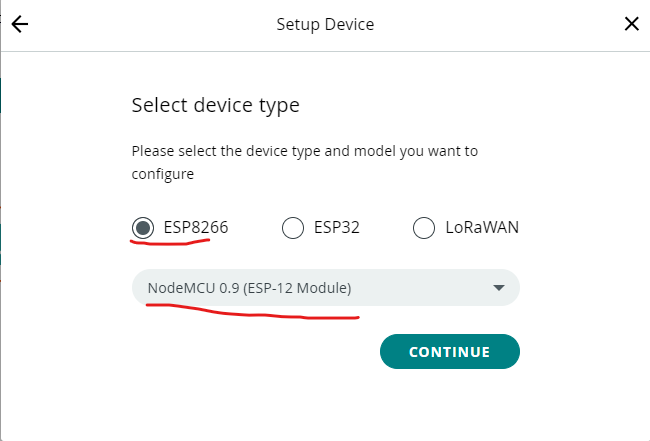

Lựa chọn thiết bị ESP8266 và board NodeMCU 0.9 (ESP-12 Module). Sau đó chọn CONTINUE.
Đặt tên cho device và chọn NEXT.
Lưu các thông tin của device, chọn xác nhận đã lưu thông tin device, và chọn CONTINUE.
Cấu hình network
Chọn vào ô cấu hình network.

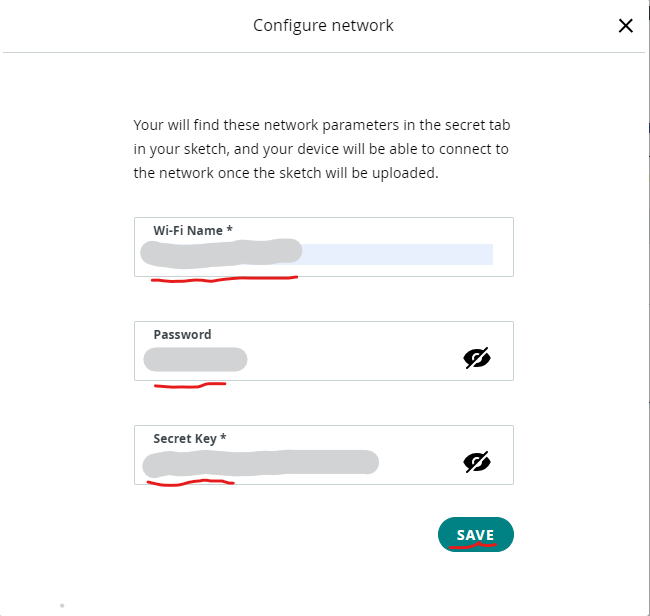

Điền thông tin Wi-Fi SSID, Wi-Fi PASWORD, và Secret key trong file PDF lưu thông tin device. Sau đó chọn Save.
Tạo Variable.
Đặt tên (Name), chọn kiểu dữ liệu (Floating Point Number), cấu hình Variable Permission, và chọn ADD VARIABLE.

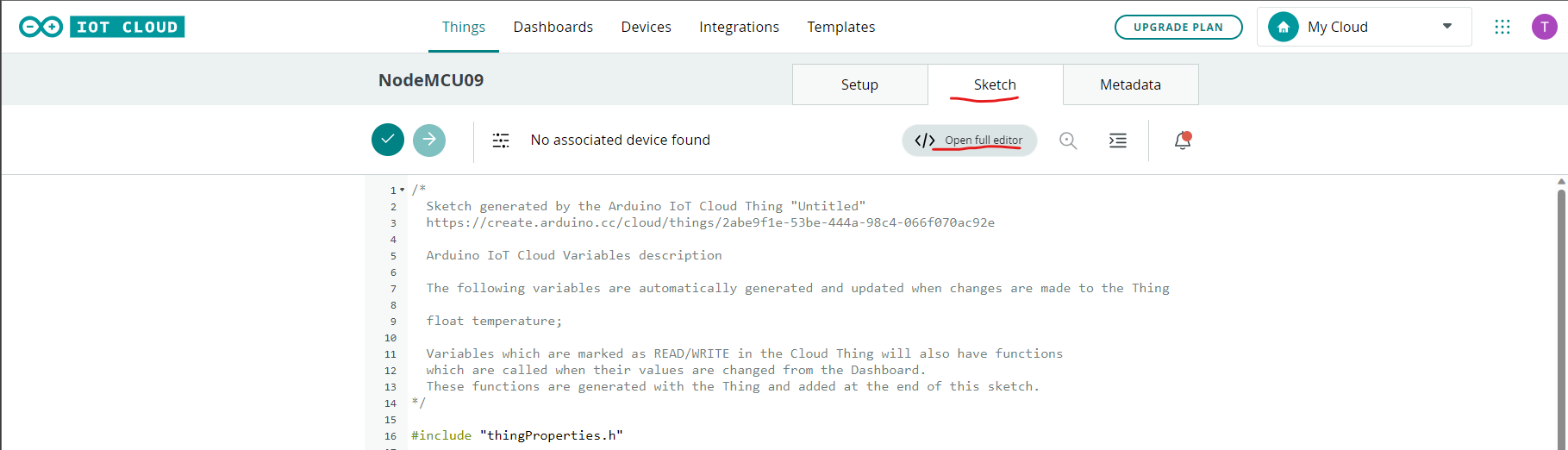

Chuyển qua tab SKETCH và mở full editor.
Lập trình firmware của bo mạch.
Cấu hình loại board và com port.
Chọn loại board và port, và chọn OK.
Thêm các dòng code đo nhiệt độ.
/*
Sketch generated by the Arduino IoT Cloud Thing "Untitled"
https://create.arduino.cc/cloud/things/2abe9f1e-53be-444a-98c4-066f070ac92e
Arduino IoT Cloud Variables description
The following variables are automatically generated and updated when changes are made to the Thing
float temperature;
Variables which are marked as READ/WRITE in the Cloud Thing will also have functions
which are called when their values are changed from the Dashboard.
These functions are generated with the Thing and added at the end of this sketch.
*/
#include "thingProperties.h"
+ int sensorPin = A0;
void setup() {
// Initialize serial and wait for port to open:
Serial.begin(9600);
// This delay gives the chance to wait for a Serial Monitor without blocking if none is found
delay(1500);
// Defined in thingProperties.h
initProperties();
// Connect to Arduino IoT Cloud
ArduinoCloud.begin(ArduinoIoTPreferredConnection);
/*
The following function allows you to obtain more information
related to the state of network and IoT Cloud connection and errors
the higher number the more granular information you’ll get.
The default is 0 (only errors).
Maximum is 4
*/
setDebugMessageLevel(2);
ArduinoCloud.printDebugInfo();
}
void loop() {
ArduinoCloud.update();
// Your code here
+ int reading = analogRead(sensorPin);
+ float voltage = reading * 3.3 / 1024.0;
+ temperature = voltage * 100.0;
+ Serial.println(temperature);
+ delay(1000);
}

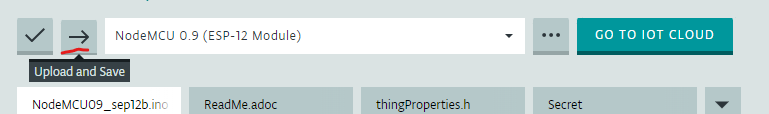

Nạp code vào board

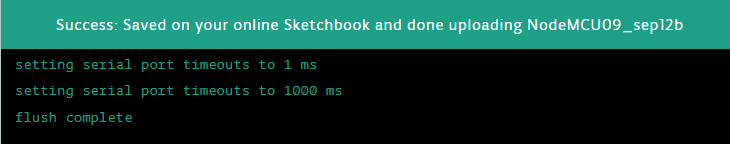

Thông báo quá trình upload thành công

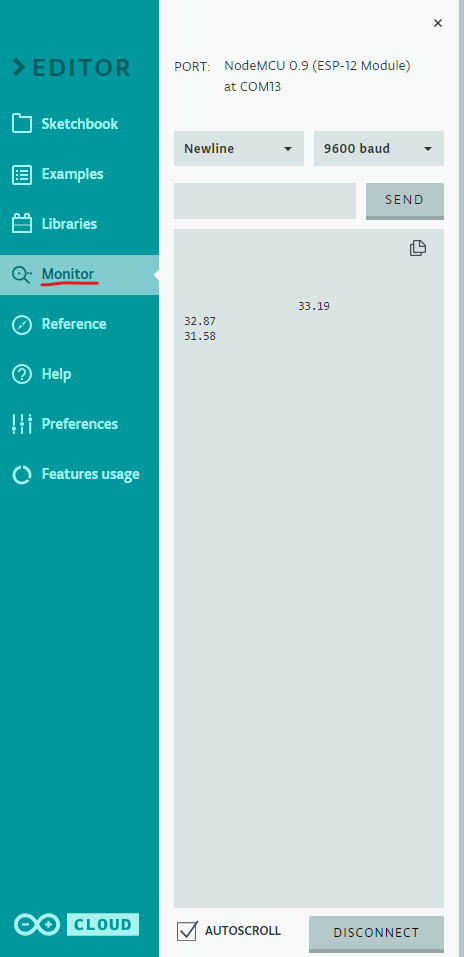

Chọn chế độ Monitor và theo dõi các giá trị nhiệt độ đo được.
Tạo Dashboard

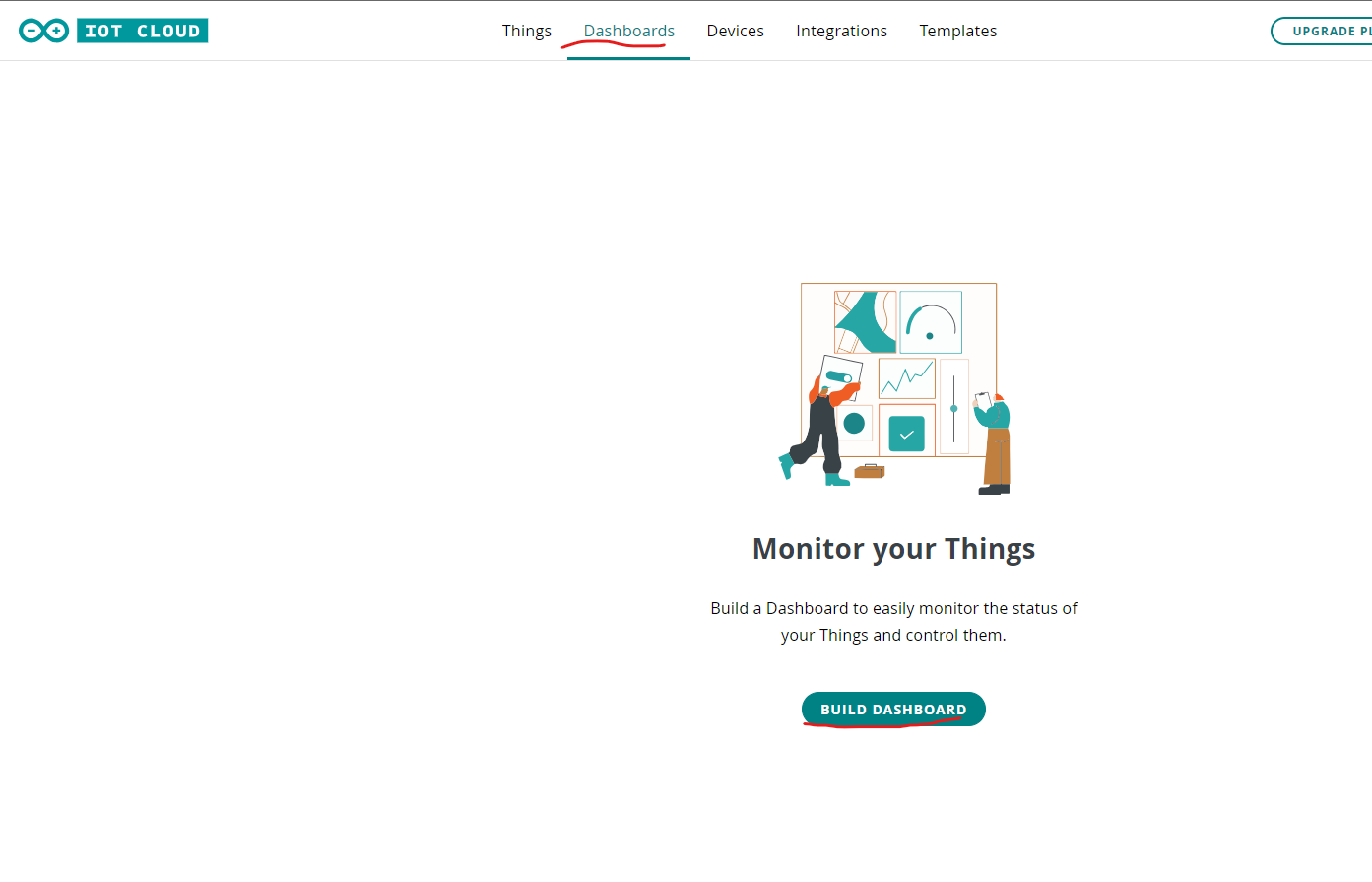

Vào IoT Cloud, chọn tab Dashboards, và chọn BUILD DASHBOARD.

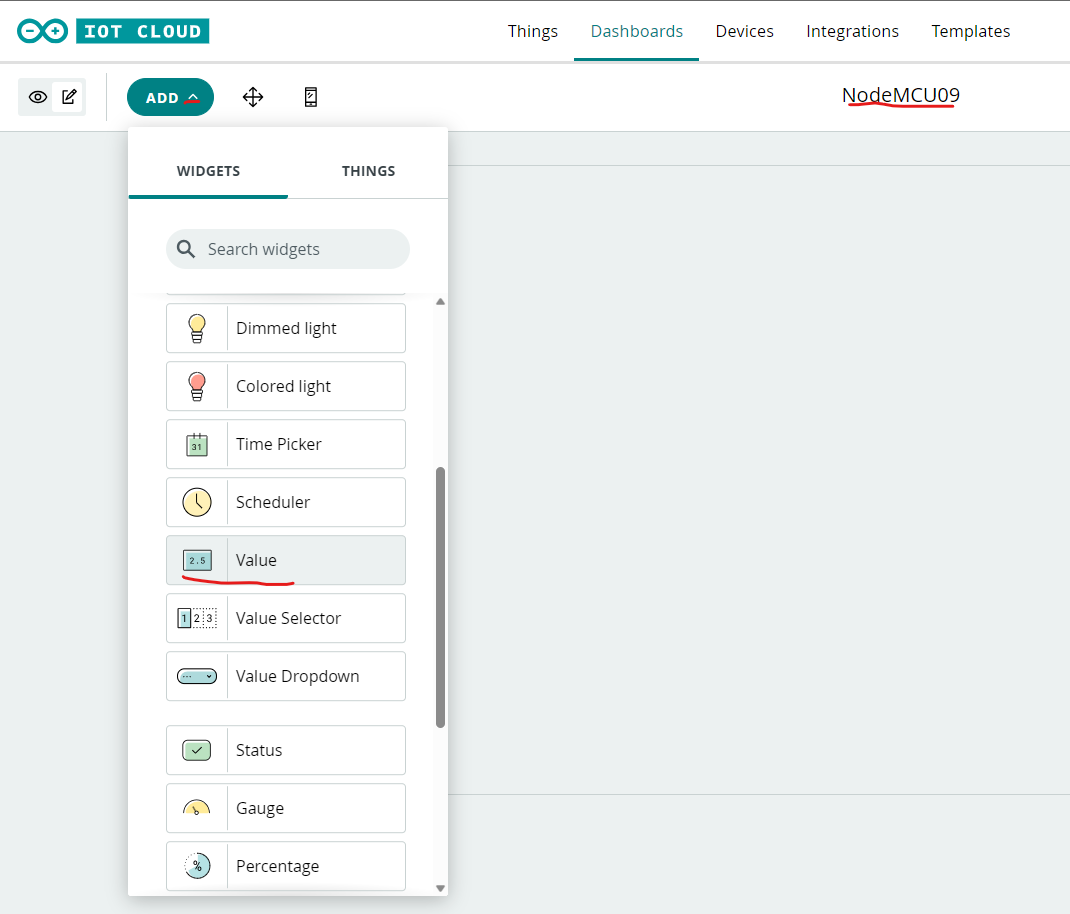

Đặt tên cho Dashboard, và tạo widget Value.

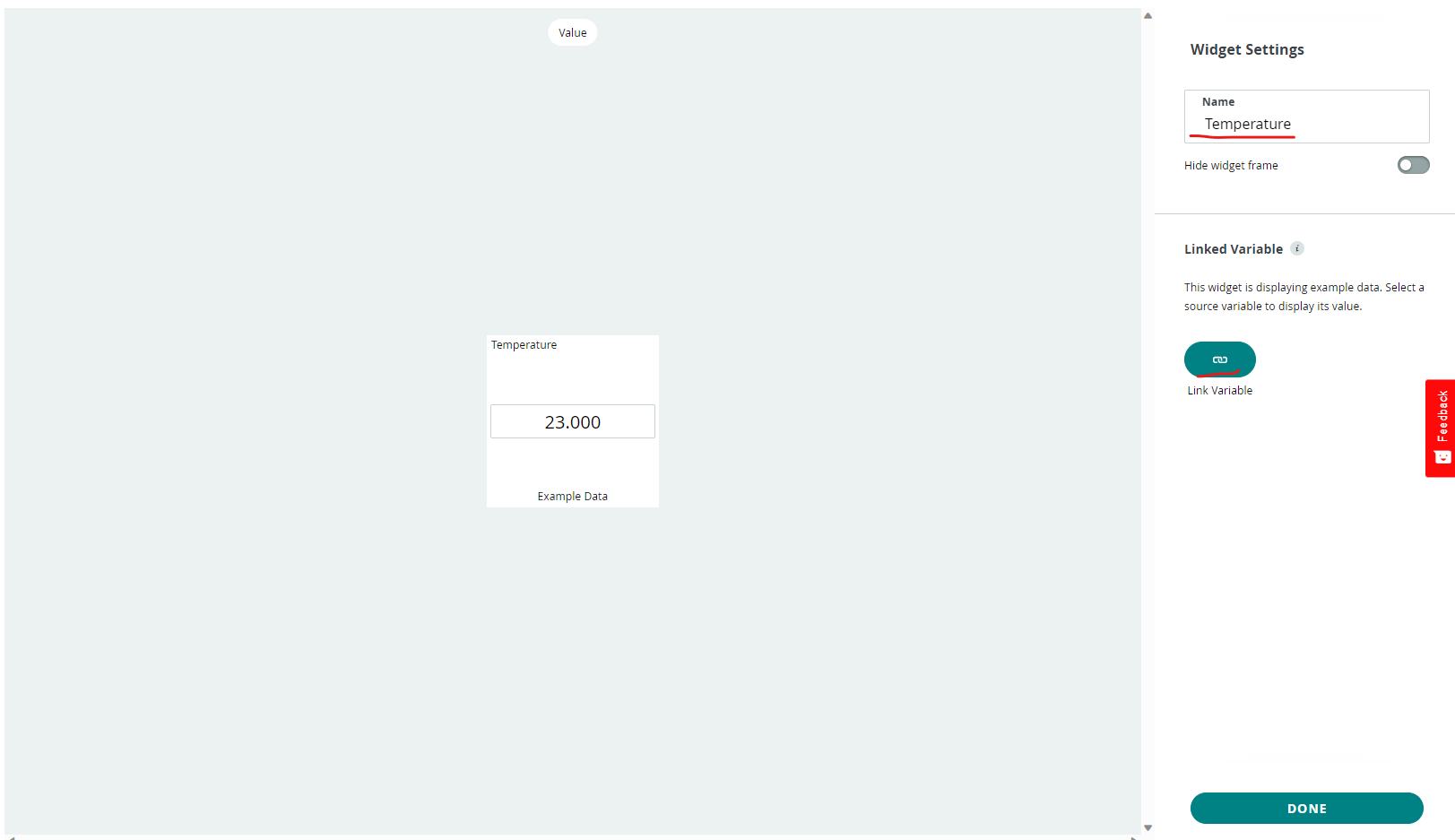

Đặt tên cho widget và chọn Linked Variable.

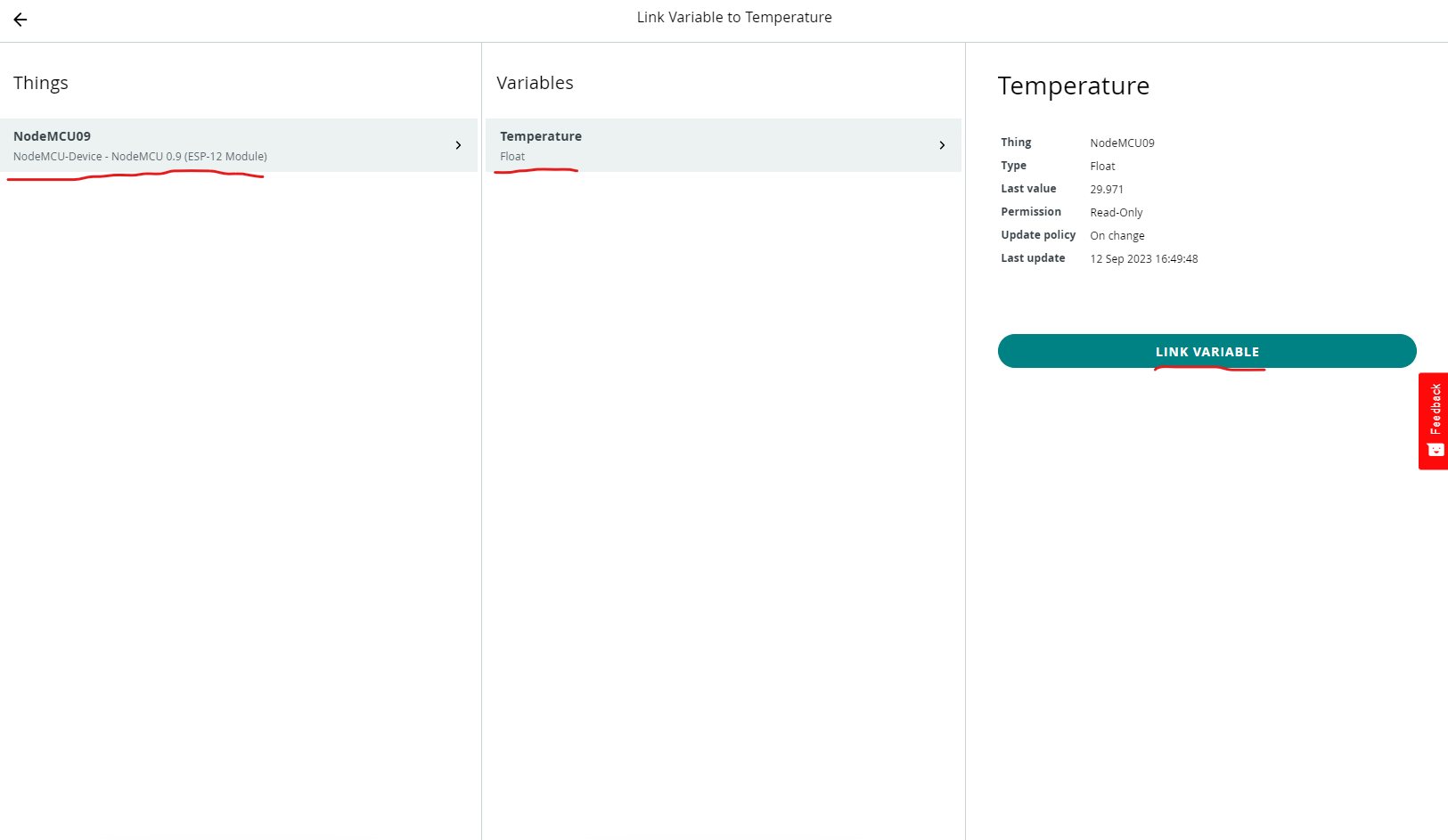

Liên kết widget với Temperature Variable. Sau đó, chọn Done.

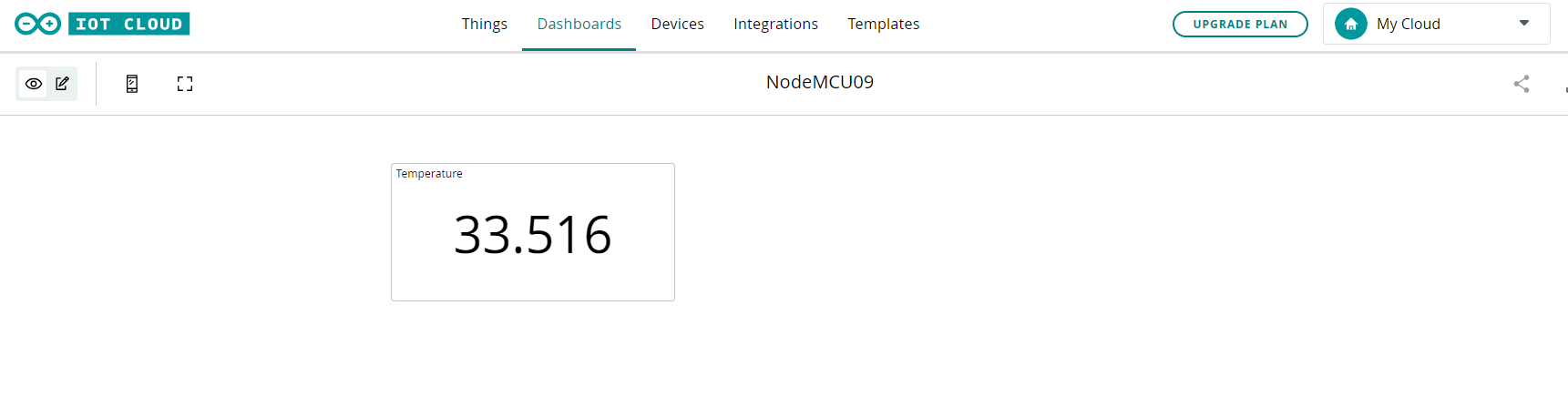

Quan sát dữ liệu nhiệt độ real-time trên dashboard đã tạo.
